Scaffolding Ladder beams

Scaffolding ladder beams play a crucial role in construction and maintenance projects, providing a versatile and stable platform for workers.

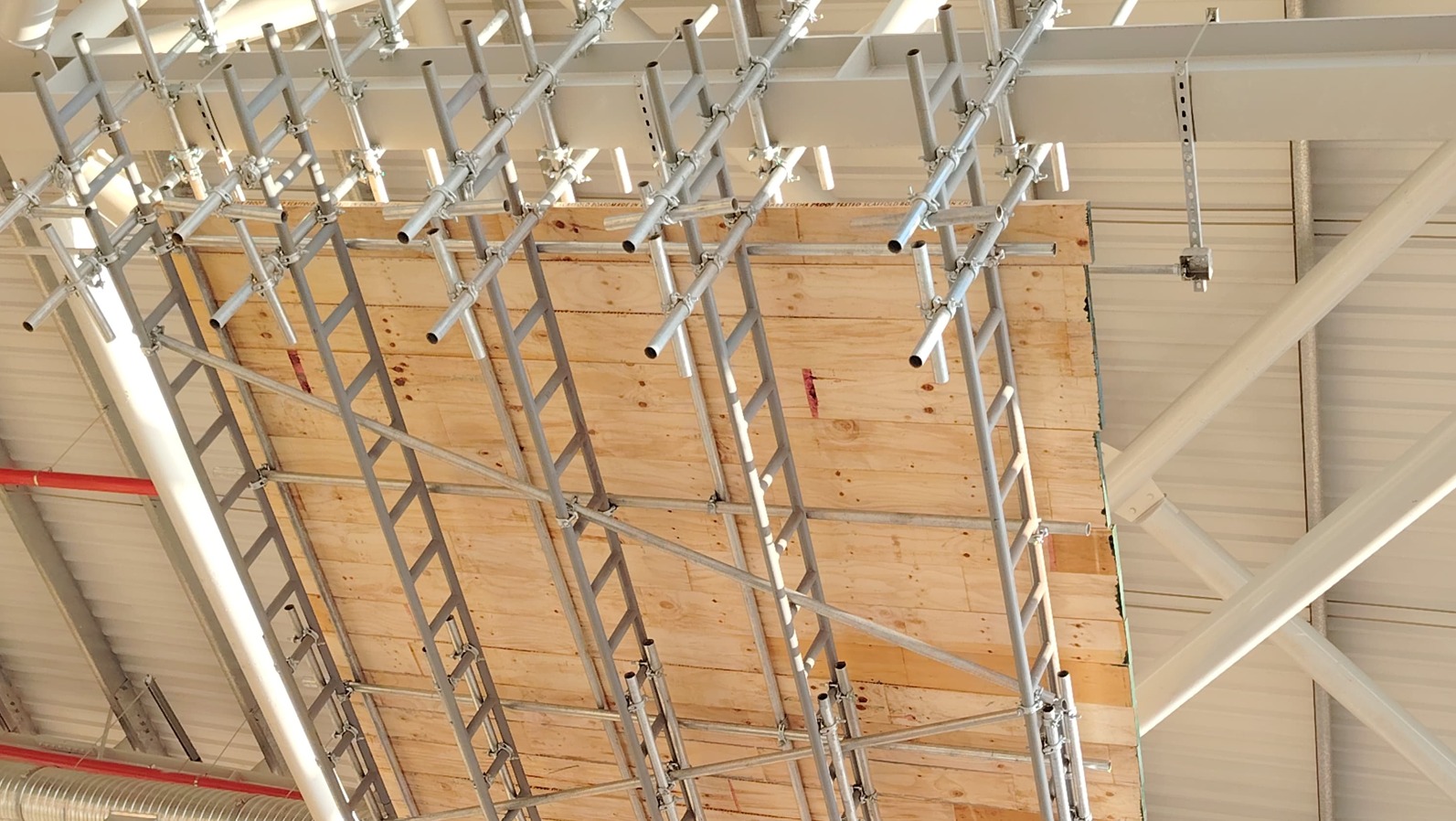

34534253425
FA

Applications And Features

  • DefinitionLadder beams are scaffold components that span large distances and openings, allowing the passage of vehicles and workers on construction sites.
  • DesignThey consist of top and bottom chords with several vertical tube supports in between.
  • MaterialLadder beams are typically made from OD 48.3mm scaffold tubes.
FA

Sizes and Dimensions

  • DepthThe standard depth of ladder beams is 305mm.
  • Vertical Support Spacing (Rungs)The distance between vertical supports (also called rungs) is also 305mm.
  • Other DepthsLadder beams are available in various depths, including 228mm, 360mm, 310mm, and 400mm.
  • LengthsPopular lengths include 6m, 5m, 4m, 3m, 2m, 6.4m, and 4.8m.
FA

Weight and Load Capacity

  • The weight of ladder beams varies based on dimensions and material.
  • Ladder beams are designed to handle heavy loads, ensuring worker safety.

Remember

  • Remember, whether you’re constructing a temporary work platform or supporting materials, ladder beams are a versatile solution

Applications

  • BridgingLadder beams can bridge gaps or openings.
  • CantileversThey serve as cantilevered supports.
  • Loading BaysLadder beams provide stable platforms for loading and unloading.
  • Support They act as essential support elements in scaffolding systems.

Scaffolding Ladder beams Specifications

LADDER BEAMS EN-10219 - 3.20mm

CodeLengthDimensionsStandardWeight
T-3LD-6006.0 MT48.3mm X 3.20mmEN 1021963.45 kg
T-3LD-5005.0 MT48.3mm X 3.20mmEN 1021952.80 kg
T-3LD-4004.00 MT48.3mm X 3.20mmEN 1021942.24 kg

LADDER BEAMS EN-39 - 4.00mm

CodeLengthDimensionsStandardWeight
T-4LD-6006.0 MT48.3mm X 4.00mmEN 3979.35 kg
T-4LD-5005.0 MT48.3mm X 4.00mmEN 3966.12 kg
T-4LD-4004.00 MT48.3mm X 4.00mmEN 3952.90 g
