ANTI-DRONE SOLUTIONS BY 9DEGREES
Anti-drone solutions in saudi arabia by 9degrees
OVERVIEW
9D provides advanced Anti-Drone (C-UAS) protection solutions designed to safeguard critical infrastructure and high-risk facilities from evolving aerial threats.
As an authorized partner of ANT Group, a specialized international provider of Anti-Drone protection systems, we deliver engineered solutions that ensure safety, reliability, and operational continuity.
Our Value Proposition
Our solutions focus on physical (passive) protection systems that do not rely on electronic interference, ensuring reliable performance in all environments.
System Description
passive physical protection
In response to the increasing risks posed by drones, Anti-Drone protection systems provide an advanced solution based on passive physical protection to prevent unauthorized aerial access to critical assets and facilities.
highly durable protective netting

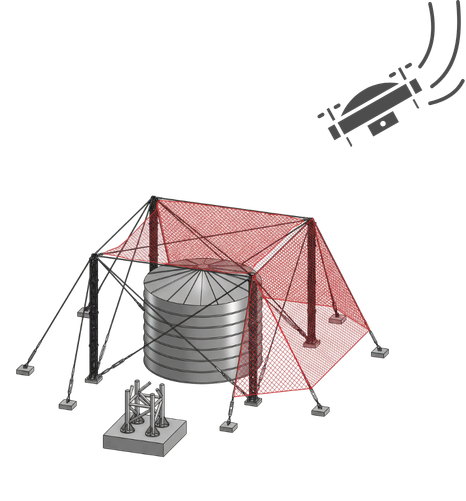

The system is based on an engineered structural design consisting of steel frameworks and high- strength mesh systems, installed around or above protected areas to create an effective physical barrier.
It is designed to withstand the impact of high-speed and heavy drones, ensuring a high level of protection without relying on electronic interference or jamming technologies.
Target Sectors
- Data Centers & Technology FacilitiesProtection of critical digital assets
- Power Plants & Energy FacilitiesGeneration plants, substations, and supply networks
- Medical Facilities & LaboratoriesSites handling sensitive or critical materials
- Oil & Gas FacilitiesTank farms, refineries, and processing units
- Industrial & Chemical FacilitiesSites handling flammable or hazardous materials
- Ports & Logistics HubsSecuring storage and cargo operations
- Telecommunication InfrastructureTelecom towers and network centers
- Transport InfrastructureRailways, substations, and control centers
- Airports & Aviation FacilitiesCivil and military airports, and critical aviation infrastructure
- Military & Defense FacilitiesMilitary bases, secure zones, and defense infrastructure
shahed-136
ADS PROTECTION
Added Value
Unlike conventional solutions that provide partial or isolated protection, the Anti-Drone system delivers a fully integrated solution covering the entire facility
- Full-site protectionFull-site protection instead of isolated equipment coverage
- Reduced operationalReduced operational and maintenance complexity
- No dependencyNo dependency on electronic or remote-control systems
- Eliminates the needEliminates the need for separate structures per asset
- Optimized costOptimized cost compared to fragmented solutions
- EXTRAProtects critical interconnected assets (pipelines, pumps, platforms)
passive physical protection

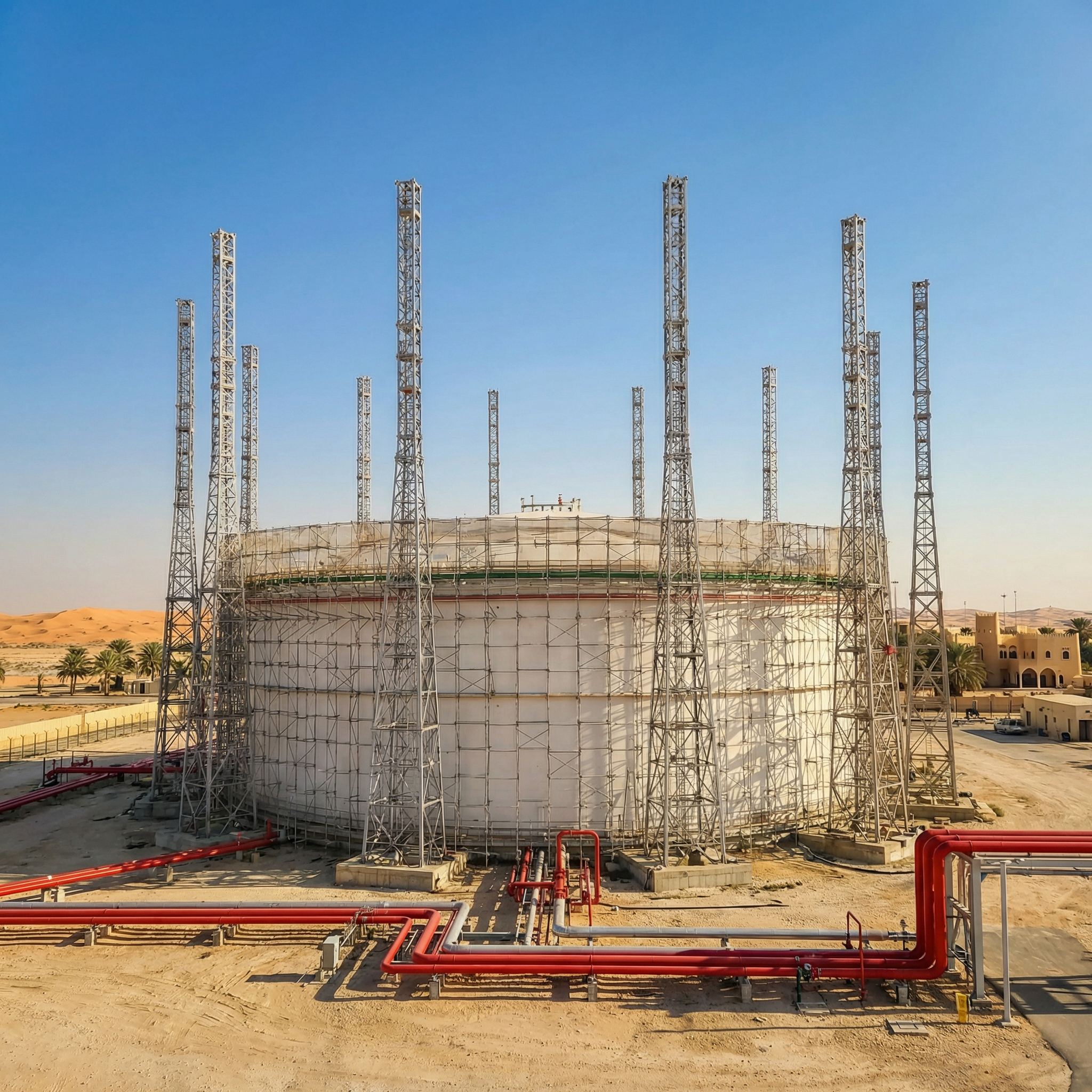

The system consists of steel supports mounted on non-permanent foundations and interconnected using high-strength tension cables of 20–35 mm diameter, forming an energy- absorbing network using steel cables of 5–6 mm diameter.
sefty layer
The mesh system features cell sizes ranging from 250 × 250 mm to 500 × 500 mm, with the option to add finer protective layers ranging from 35 × 35 mm to 120 × 120 mm, depending on the threat level.
Quick assembly and disassembly
The system requires no complex civil works, allows fast installation and dismantling, and utilizes corrosion-resistant materials with optional integration of additional environmental protection systems.
System Performance & Requirements
The ANTIDRON system is designed to provide advanced protection against drone threats, including risks associated with hazardous payloads.
- Capable of stopping drones up to 400 kg at speeds reaching 200 km/h
- Maintains a safe separation distance to reduce the effects of impact or blast
- Contributes to mitigating the impact of hazardous payloads, including blast effects equivalent to up to 30 kg TNT
- Utilizes an integrated structural and mesh system to absorb and dissipate impact energy
- Prevents direct access to critical assets and limits the transfer of impact effects
ADS
KSA
Proven Performance & Field Applications
The Anti-Drone protection system has been successfully deployed across more than 150 critical facilities, including:
During actual threat scenarios, 4+ facilities were subjected to drone-related incidents, where the system demonstrated 100% effectiveness in preventing direct access and mitigating potential impact.
Based on operational performance and deployment experience, the system is designed to deliver high levels of protection, with an expected effectiveness of no less than 80% under typical conditions, depending on site configuration and threat scenarios.
Advanced Features & System Integration
The system offers a range of advanced features that enhance operational flexibility and enable seamless integration with various site requirements:
- Reduced dependency on heavy lifting equipment, facilitating easier maintenance and replacement
- Modular design allowing system modification and expansion based on project needs
- Provision of support structures (towers) for additional applications such as surveillanceand system installation
Anti-Drone System Classification
| Category | UAV Weight | Speed | Kinetic Energy | TNT Equivalent | Safety Distance |
|---|---|---|---|---|---|
| MAX | Up to 400 kg | Up to 200 km/h | Up to 617 kJ | Up to 30 kg | 5 – 15 m |
| Medium | Up to 250 kg | Up to 200 km/h | Up to 385 kJ | 10 – 15 kg | 5 – 15 m |
| Light | Up to 100 kg | Up to 120 km/h | Up to 55 kJ | 6 – 10 kg | 3 – 10 m |
| Small | Up to 30 kg | Up to 60 km/h | Up to 4 kJ | Below 6 kg | 3 – 8 m |
Anti-Drone Solution Comparison
Other local system vs. ANT Group / ADS KSA (9Degrees)
| Product Type | Passive physical anti-drone woven mesh fence system | Passive physical anti-drone modular cable-and-netting structure |
|---|---|---|
| Drone type | commercial drones | Any type (commercial, fixed wing) |
| Max Drone Weight | Up to 80 kg | Up to 400 kg |
| Explosive Payload Resistance | 5 kg explosives | Up to 30 kg TNT equivalent |
| Structure Design | Rigid pole-mounted woven mesh fence with fixed height (~30m above asset) | Modular steel support towers with tension cables and layered mesh, up to 100m height |
| Mesh / Net Opening Size | Less than 0.1m | 250×250mm to 500×500mm (with finer layers 35×35mm to 120×120mm) |
| Installation | Permanent – requires civil works, anchor bolts, and fixed base plates | Non-permanent foundations; quick assembly and disassembly; no complex civil works |
| Maintenance | Low | Low |
| Target Sectors | Oil & gas tanks, substations, fuel farms, battery energy storage, ammunition depots | 10 sectors: oil & gas, power, military, airports, data centers, telecom, ports, transport, medical, industrial & chemical |
| Electronic Dependency | None – fully passive | None – fully passive, no jamming required |
| Coverage Model | Individual asset protection (per tank / equipment) | Full-site coverage – entire facility under one integrated solution |
| Surveillance Integration | Support poles can host surveillance cameras and additional systems | Support towers can host surveillance cameras and additional systems |
| Key Strength | -- | Superior payload/weight capacity; modular; full-site coverage; multi-sector versatility, non-permanent |
