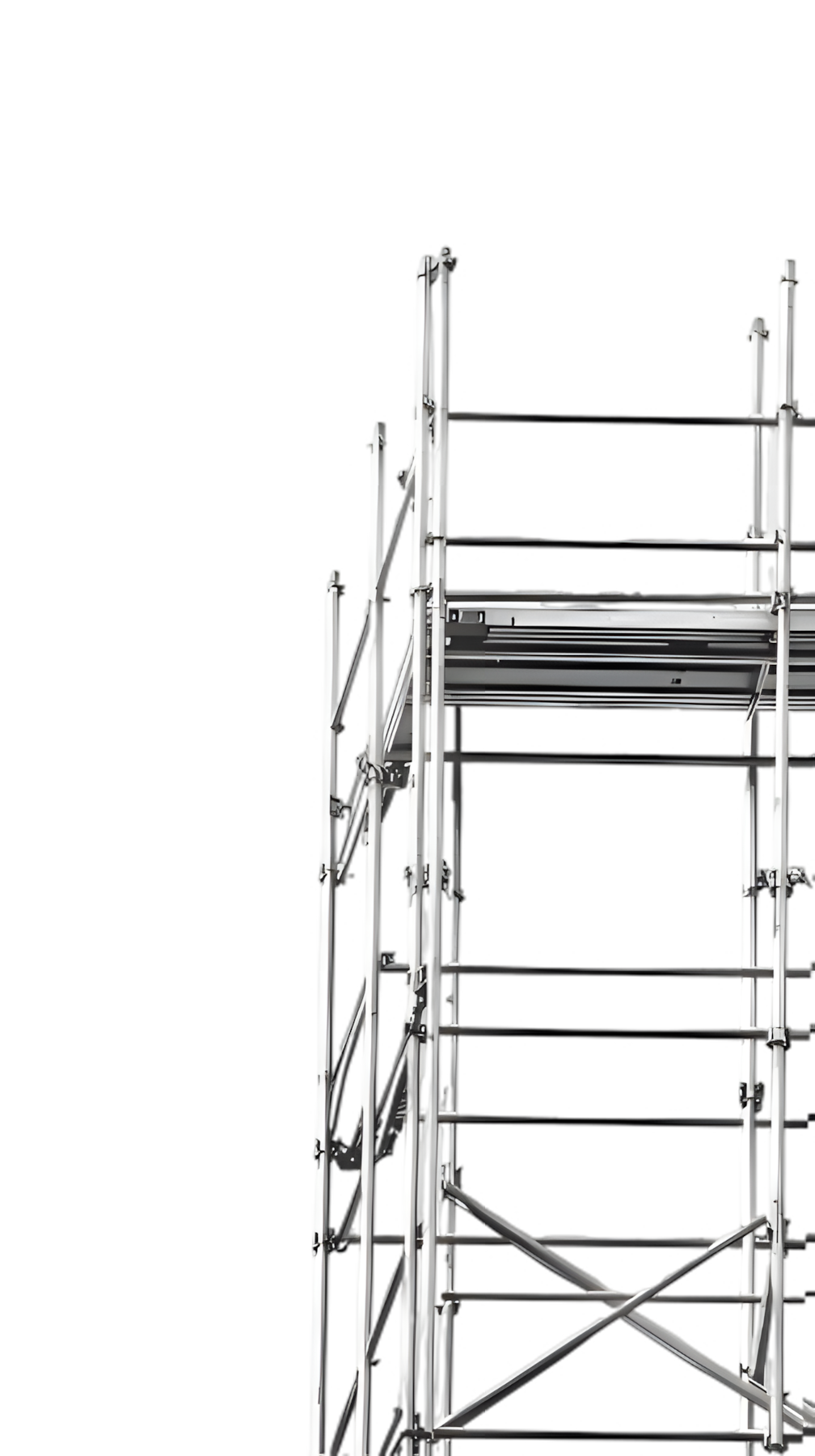

04afaf72 74f3 48ef ab04 f1b670cac99d removalai preview upscayl 3x upscayl standard 4x
//
OUR PROUDCTS

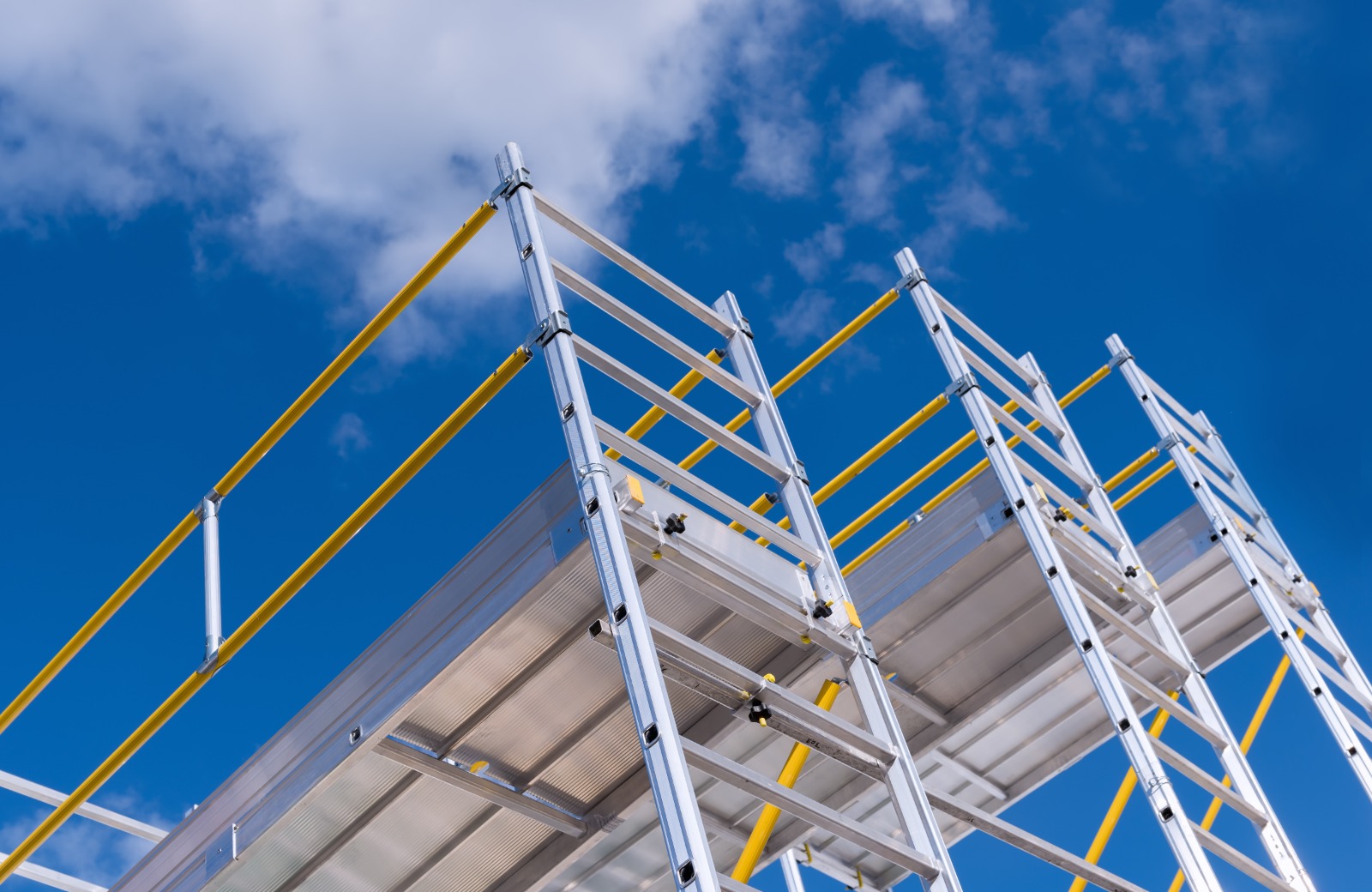

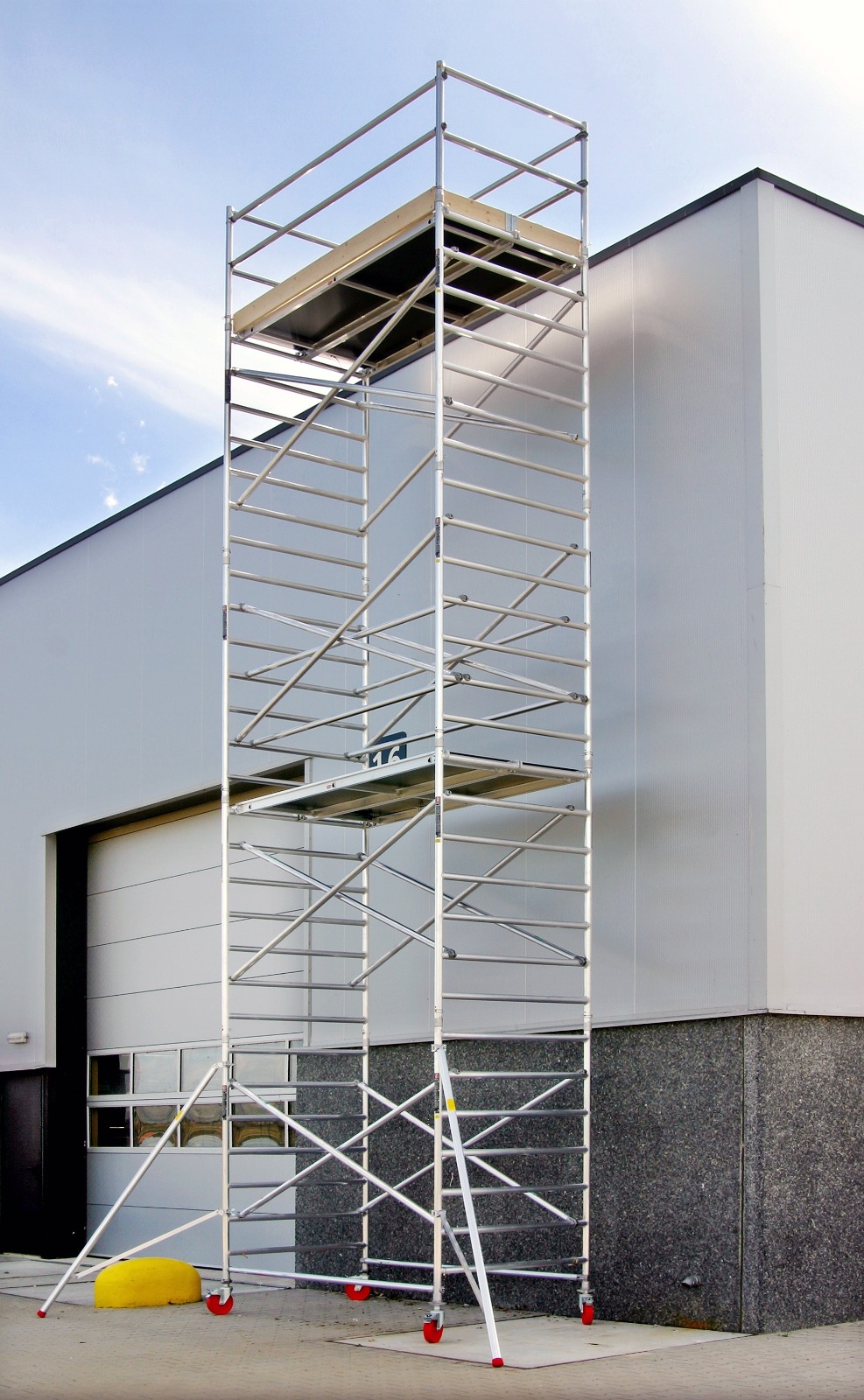

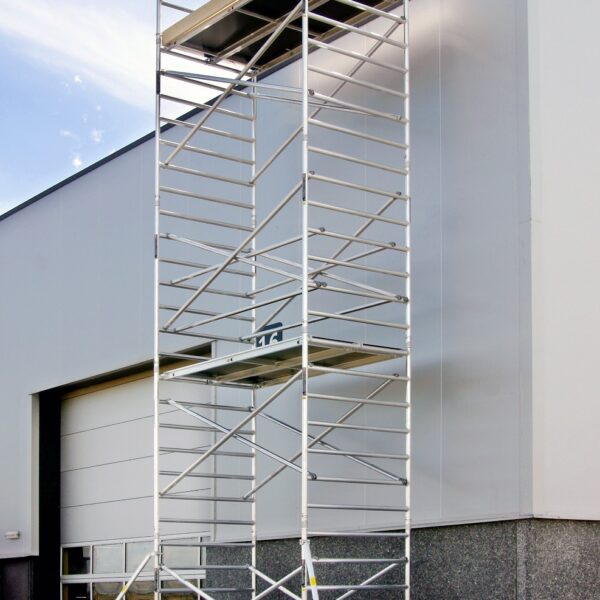

Single-Wide Aluminum Scaffolding Tower

Features

_
  • Width0.715 meters
  • LengthAvailable in 2m, 2.5m, and 3m
  • HeightCan be built up to 8 meters
  • Platform HeightAdjustable in 0.5-meter increments
  • MobilityOften equipped with wheels for easy movement
5cmWidth
Up to3mLength
Up to8mHeight
ParameterSpecification
MaterialAluminum Alloy (Grade 6061-T6 / 6082)
Platform Width0.75 m / 1.35 m
Platform Length2.0 m / 2.5 m
Tower Height (Max)Up to 12 meters (Indoor) / 8 meters (Outdoor)
Load Capacity200–250 kg per platform (Uniform Load)
Wheel Size200 mm heavy-duty lockable caster
ComplianceEN 1004 / BS EN 12811 / OSHA Standards

Key Features

_
  • LightweightAluminum scaffolding towers are significantly lighter than traditional steel scaffolding, making them easier to transport and assemble.
  • DurabilityDespite being lightweight, aluminum is highly durable and resistant to corrosion, ensuring a long lifespan.
  • MobilityMany aluminum scaffolding towers come with wheels or casters, allowing for easy movement around the worksite.
  •  Quality Assurance System is certified in the standard of EN131 AND EN1004 and quality, safety, and design at a higher level.

Benefits

_
  • Ease of AssemblyAluminum scaffolding towers are designed for quick and easy assembly, often without the need for specialized tools.
  • SafetyThey are equipped with safety features such as guardrails, non-slip platforms, and stabilizers to ensure worker safety.
  • Cost-EffectiveDue to their durability and ease of use, aluminum scaffolding towers can be a cost-effective solution for many projects.

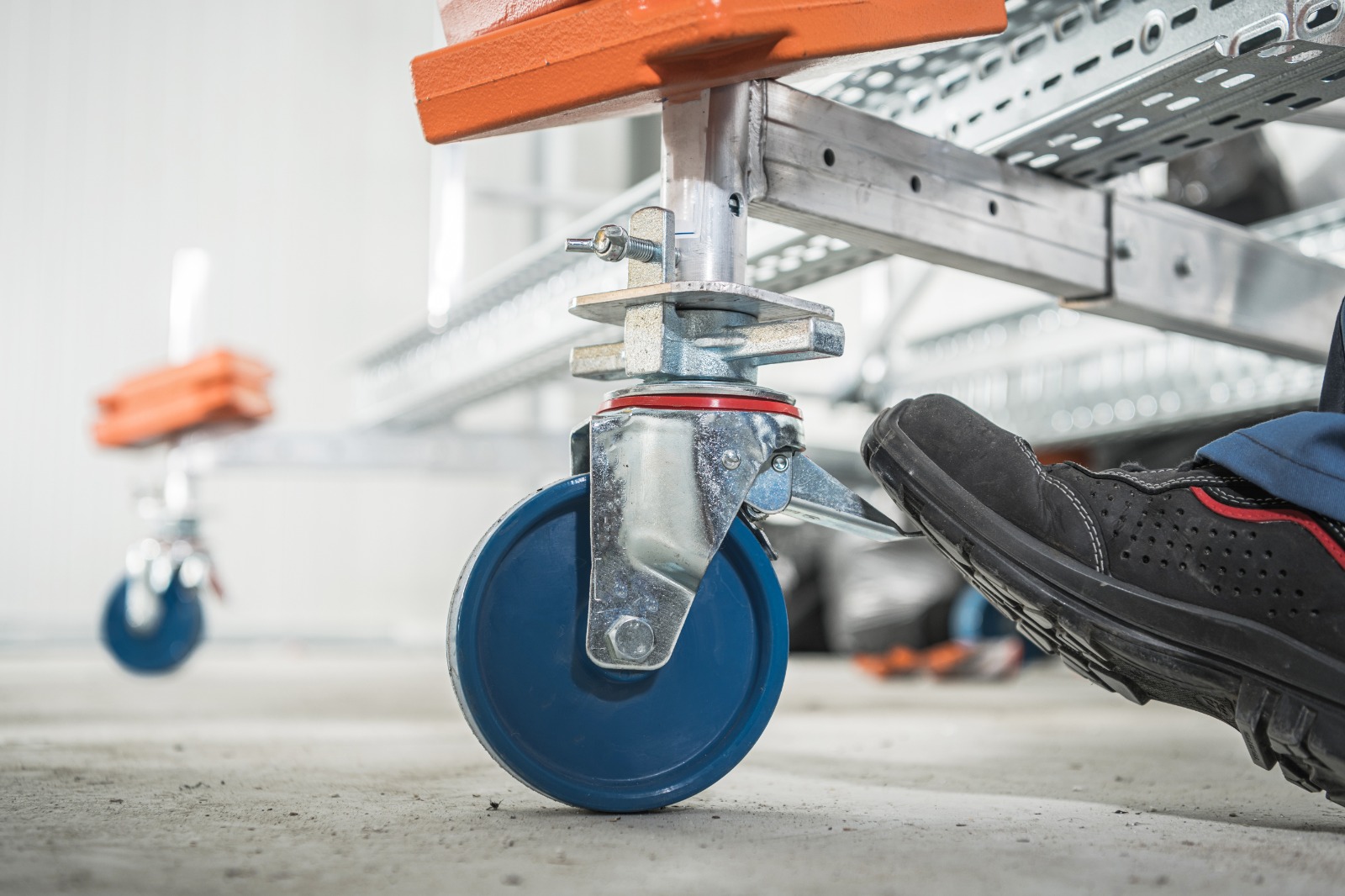

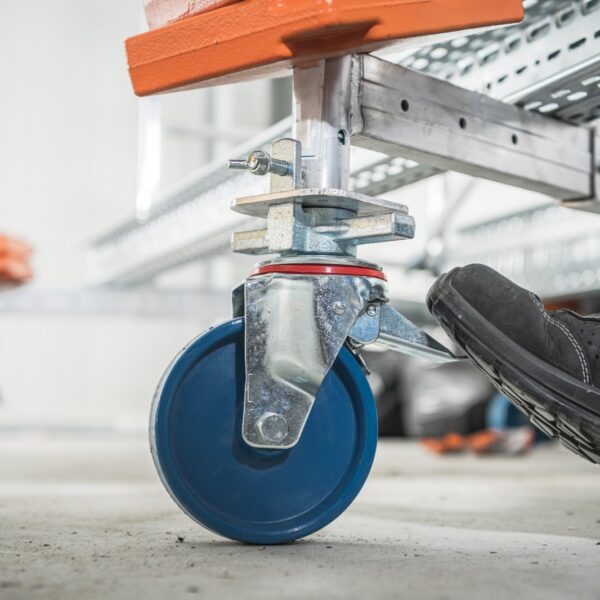

Wheels

Benefits of Using Castor Wheels

  • MobilityEasily move the scaffolding tower around the worksite without dismantling it.
  • StabilityLockable brakes ensure the tower stays in place during use.
  • VersatilitySuitable for various surfaces, including concrete, asphalt, and indoor flooring.
Water mark
Water mark
  • SizeTypically, 4 to 8 inches in diameter
  • MaterialHeavy-duty rubber or polyurethane
  • FeaturesLockable brakes for stability, 360-degree swivel for easy maneuverability
  • Size8 to 12 inches in diameter
  • MaterialReinforced rubber or polyurethane with a steel core
  • FeaturesEnhanced load capacity, double-locking mechanism for added safety
  • SizeAdjustable height to accommodate uneven surfaces
  • MaterialHigh-strength aluminum or steel with rubber wheels
  • FeaturesHeight adjustment, lockable brakes, and 360-degree swivel

Size Chart for Aluminum Scaffolding Towers

Single-Wide Aluminum Scaffolding Tower - LIGHT WEIGHT

Platform Height : Adjustable in 0.5m increments

ST-01230-SWorking Height : 13.30M

Aluminium Scaffolding Tower ST-01230-S

  • Tower Length1.8m
  • Tower Width0.85m
  • Safe Working Load255kg Each Platform
  • Pipe thickness3.0mm
30MWorking Height
30MTower Height
30MPlatform Heigth

Specification for one set: X 1 SET

_
Item No.Description ItemQty for 1 SetTotal QTY for 1 SET
ST-01230-S85 cm Wide 4 Rung Ladder Frames 200cm Height55
ST-01230-S85 cm Wide 4 Rung Span Frames 200cm Height55
ST-01230-S85 cm Wide 2 Rung Guard Rail 100cm Height22

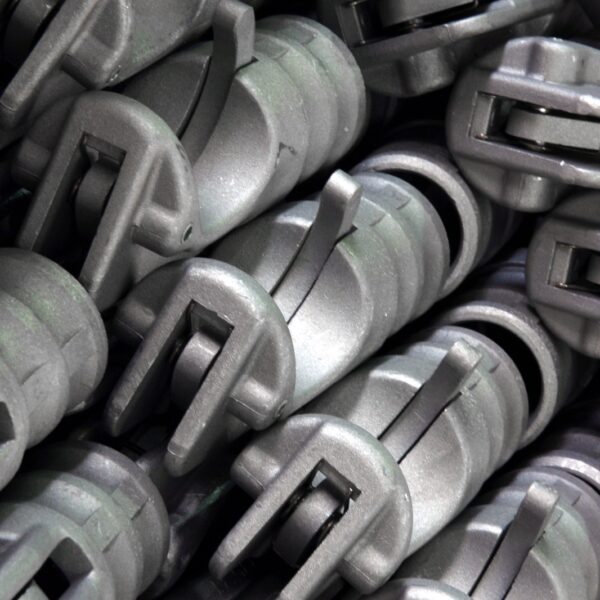

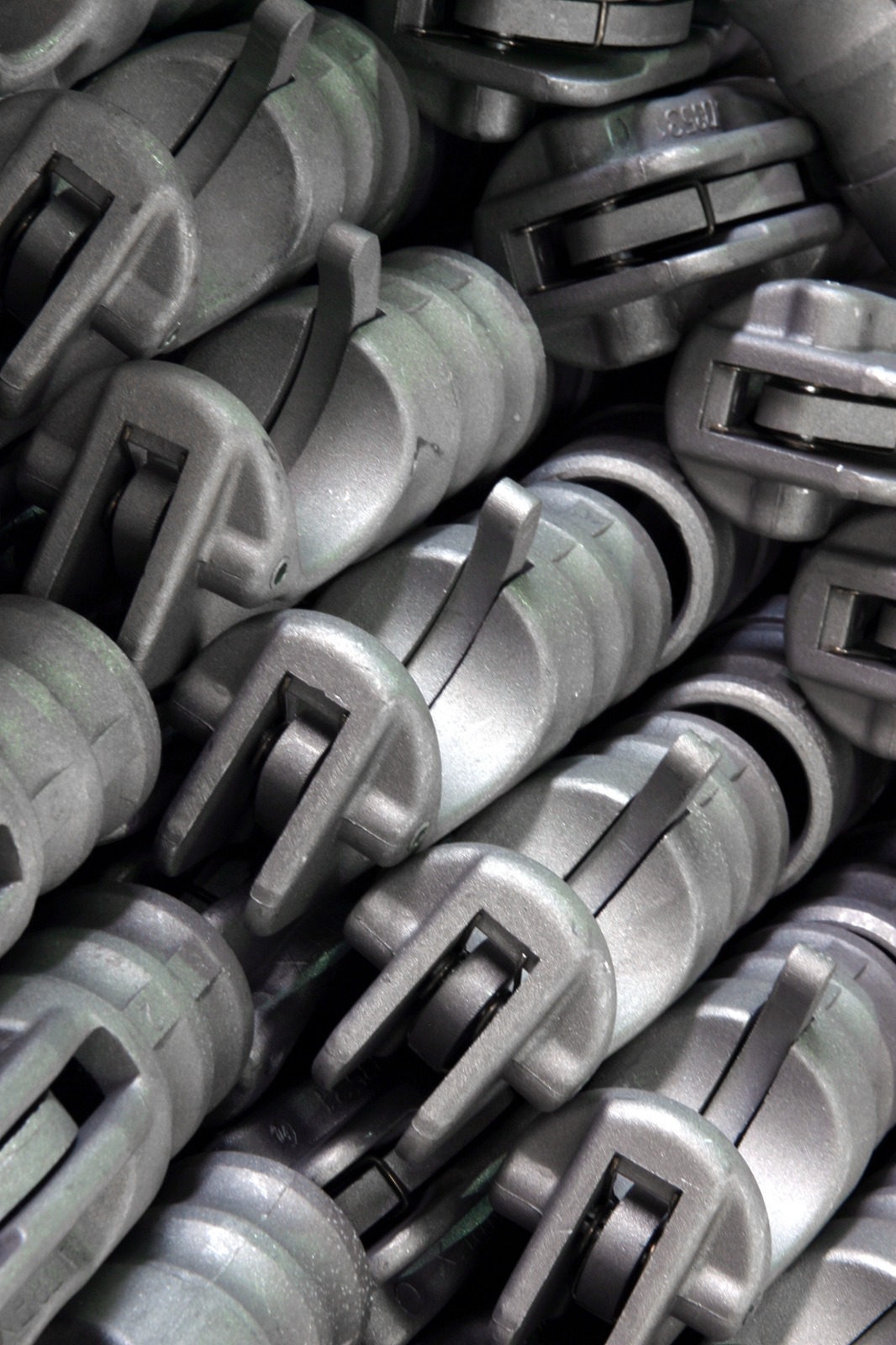

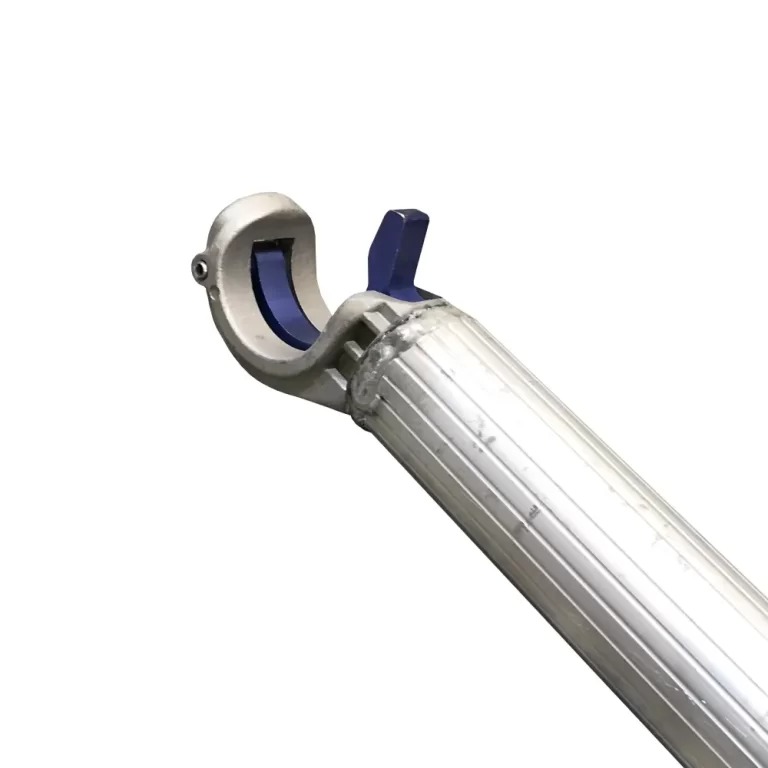

ST-01230-S180 cm long Horizontal Braces with locking hooks1010
ST-01230-S200 cm long Diagonal Braces with locking hooks1212
ST-01230-S180 cm Long Trapdoor Platform with opening Door22
ST-01230-S600cm Long Stabilizer44
ST-01230-S80 cm Wooden Side Toe Board22
ST-01230-S180 cm Wooden Side Toe Board22
ST-01230-S20 cm Castor Wheel with 50cm Adj. Jack44
ST-01030-SWorking Height : 11.30M

Aluminium Scaffolding Tower ST-01030-S

  • Tower Length1.8m
  • Tower Width0.85m
  • Safe Working Load255kg Each Platform
  • Pipe thickness3.0mm
30MWorking Height
30MTower Height
30MPlatform Heigth

Specification for one set: X 1 SET

_
Item No.Description ItemQty for 1 SetTotal QTY for 1 SET
ST-01030-S85 cm Wide 4 Rung Ladder Frames 200cm Height55
ST-01030-S85 cm Wide 4 Rung Span Frames 200cm Height55
ST-01030-S180 cm long Horizontal Braces with locking hooks1414
ST-01030-S200 cm long Diagonal Braces with locking hooks1212
ST-01030-S180 cm Long Trapdoor Platform with opening Door22
ST-01030-S600cm Long Stabilizer44
ST-01030-S80 cm Wooden Side Toe Board22
ST-01030-S180 cm Wooden Side Toe Board22
ST-01030-S20 cm Castor Wheel with 50cm Adj. Jack44
ST-0930-SWorking Height : 10.30M

Aluminium Scaffolding Tower ST-0930-S

  • Tower Length1.8m
  • Tower Width0.85m
  • Safe Working Load255kg Each Platform
  • Pipe thickness3.0mm
30MWorking Height
30MTower Height
30MPlatform Heigth

Specification for one set: X 1 SET

_
Item No.Description ItemQty for 1 SetTotal QTY for 1 SET
ST-0830-S85 cm Wide 4 Rung Ladder Frames 200cm Height45
ST-0830-S85 cm Wide 4 Rung Span Frames 200cm Height45
ST-0830-S180 cm long Horizontal Braces with locking hooks412
ST-0830-S200 cm long Diagonal Braces with locking hooks410
ST-0830-S180 cm Long Trapdoor Platform with opening Door42
ST-0830-S600cm Long Stabilizer44
ST-0830-S80 cm Wooden Side Toe Board42
ST-0830-S180 cm Wooden Side Toe Board42
ST-0830-S20 cm Castor Wheel with 50cm Adj. Jack44
ST-0830-SWorking Height : 9.30M

Aluminium Scaffolding Tower ST-0830-S

  • Tower Length1.8m
  • Tower Width0.85m
  • Safe Working Load255kg Each Platform
  • Pipe thickness3.0mm
30MWorking Height
30MTower Height
30MPlatform Heigth

Specification for one set: X 1 SET

_
Item No.Description ItemQty for 1 SetTotal QTY for 1 SET
ST-0830-S85 cm Wide 4 Rung Ladder Frames 200cm Height44
ST-0830-S85 cm Wide 4 Rung Span Frames 200cm Height44
ST-0830-S180 cm long Horizontal Braces with locking hooks1010
ST-0830-S200 cm long Diagonal Braces with locking hooks88
ST-0830-S180 cm Long Trapdoor Platform with opening Door22
ST-0830-S600cm Long Stabilizer44
ST-0830-S80 cm Wooden Side Toe Board22
ST-0830-S180 cm Wooden Side Toe Board22
ST-0830-S20 cm Castor Wheel with 50cm Adj. Jack44
ST-0730-SWorking Height : 8.30M

Aluminium Scaffolding Tower ST-0730-S

  • Tower Length1.8m
  • Tower Width0.85m
  • Safe Working Load255kg Each Platform
  • Pipe thickness3.0mm
30MWorking Height
30MTower Height
30MPlatform Heigth

Specification for one set: X 1 SET

_
Item No.Description ItemQty for 1 SetTotal QTY for 1 SET
ST-0730-S85 cm Wide 4 Rung Ladder Frames 200cm Height33
ST-0730-S85 cm Wide 4 Rung Span Frames 200cm Height33
ST-0730-S85 cm Wide 2 Rung Guard Rail 100cm Height22
ST-0730-S180 cm long Horizontal Braces with locking hooks88
ST-0730-S200 cm long Diagonal Braces with locking hooks86
ST-0730-S180 cm Long Trapdoor Platform with opening Door11
ST-0730-S300cm Long Stabilizer44
ST-0730-S80 cm Wooden Side Toe Board22
ST-0730-S180 cm Wooden Side Toe Board22
ST-0730-S20 cm Castor Wheel with 50cm Adj. Jack44
ST-0630-SWorking Height : 7.30M

Aluminium Scaffolding Tower ST-0630-S

  • Tower Length1.8m
  • Tower Width0.85m
  • Safe Working Load255kg Each Platform
  • Pipe thickness3.0mm
30MWorking Height
30MTower Height
30MPlatform Heigth

Specification for one set: X 1 SET

_
Item No.Description ItemQty for 1 SetTotal QTY for 1 SET
ST-0620-S85 cm Wide 4 Rung Ladder Frames 200cm Height33
ST-0620-S85 cm Wide 4 Rung Span Frames 200cm Height33
ST-0620-S180 cm long Horizontal Braces with locking hooks88
ST-0620-S200 cm long Diagonal Braces with locking hooks66
ST-0620-S180 cm Long Trapdoor Platform with opening Door11
ST-0620-S300cm Long Stabilizer44
ST-0620-S114 cm Wooden Side Toe Board22
ST-0620-S242 cm Wooden Side Toe Board22
ST-0620-S20 cm Castor Wheel with 50cm Adj. Jack44
ST-0520-SWorking Height : 6.20M

Aluminium Scaffolding Tower ST-0520-S

  • Tower Length1.8m
  • Tower Width0.85m
  • Safe Working Load255kg Each Platform
  • Pipe thickness3.0mm
20MWorking Height
20MTower Height
20MPlatform Heigth

Specification for one set: X 1 SET

_
Item No.Description ItemQty for 1 SetTotal QTY for 1 SET
ST-0520-S85 cm Wide 4 Rung Ladder Frames 200cm Height22
ST-0520-S85 cm Wide 4 Rung Span Frames 200cm Height22
ST-0520-S85 cm Wide 2 Rung Guard Rail 100cm Height22
ST-0520-S180 cm long Horizontal Braces with locking hooks66
ST-0520-S180 cm long Diagonal Braces with locking hooks66
ST-0520-S180 cm Long Trapdoor Platform with opening Door11
ST-0520-SStabilizer 3.0 Mtr44
ST-0520-S80 cm Wooden Side Toe Board22
ST-0520-S180 cm Wooden Side Toe Board22
ST-0520-SSnap Pin88
ST-0520-S20 cm Castor Wheel with brakes & 50cm Adjustable Jack & Nut44
ST-0420-SWorking Height : 5.20M

Aluminium Scaffolding Tower ST-0420-S

  • Tower Length1.8m
  • Tower Width0.85m
  • Safe Working Load255kg Each Platform
  • Pipe thickness3.0mm
20MWorking Height
20MTower Height
20MPlatform Heigth

Specification for one set: X 1 SET

_
Item No.Description ItemQty for 1 SetTotal QTY for 1 SET
ST-0420-S85 cm Wide 4 Rung Ladder Frames 200cm Height22
ST-0420-S85 cm Wide 4 Rung Span Frames 200cm Height22
ST-0420-S180 cm long Horizontal Braces with locking hooks66
ST-0420-S200 cm long Diagonal Braces with locking hooks44
ST-0420-S1.80 cm Long Trapdoor Platform with opening Door11
ST-0420-S114 cm Wooden Side Toe Board22
ST-0420-S242 cm Wooden Side Toe Board22
ST-0420-S15 cm Castor Wheel with Fixed Jack44
ST-0320-SWorking Height : 4.20M

Aluminium Scaffolding Tower ST-0320-S

  • Tower Length1.8m
  • Tower Width0.85m
  • Safe Working Load255kg Each Platform
  • Pipe thickness3.0mm
20MWorking Height
20MTower Height
20MPlatform Heigth

Specification for one set: X 1 SET

_
Item No.Description ItemQty for 1 SetTotal QTY for 1 SET
ST-0320-S85 cm Wide 4 Rung Ladder Frames 200cm Height11
ST-0320-S85 cm Wide 4 Rung Span Frames 200cm Height11
ST-0320-S85 cm Wide 2 Rung Guard Rail 100cm Height22
ST-0320-S180 cm long Horizontal Braces with locking hooks66
ST-0320-S200 cm long Diagonal Braces with locking hooks22
ST-0320-S180 cm Long Trapdoor Platform with opening Door11
ST-0320-S80 cm Wooden Side Toe Board22
ST-0320-S180 cm Wooden Side Toe Board22
ST-0320-S15 cm Castor Wheel with Fixed Jack44
ST-0220-SWorking Height : 3.20M

ALUMINIUM SCAFFOLDING Tower ST-0220-S

  • Tower Length1.8m
  • Tower Width0.85m
  • Safe Working Load255kg Each Platform
  • Pipe thickness3.0mm
20MWorking Height
20MTower Height
20MPlatform Heigth

Specification for one set: X 1 SET

_
Item No.Description ItemQty for 1 SetTotal QTY for 1 SET
ST-0220-S85 cm Wide 4 Rung Ladder Frames 200cm Height11
ST-0220-S85 cm Wide 4 Rung Span Frames 200cm Height11
ST-0220-S180 cm long Horizontal Braces with locking hooks44
ST-0220-S200 cm long Diagonal Braces with locking hooks22
ST-0220-S180 cm Long Trapdoor Platform with opening Door11
ST-0220-S80 cm Wooden Side Toe Board22
ST-0220-S180 cm Wooden Side Toe Board22
ST-0220-S15 cm Castor Wheel with Fixed Jack44

Aluminum

Scaffolding Tower

24352435 600x600
23432434 600x600
2323232 1 600x600
23542352 600x600

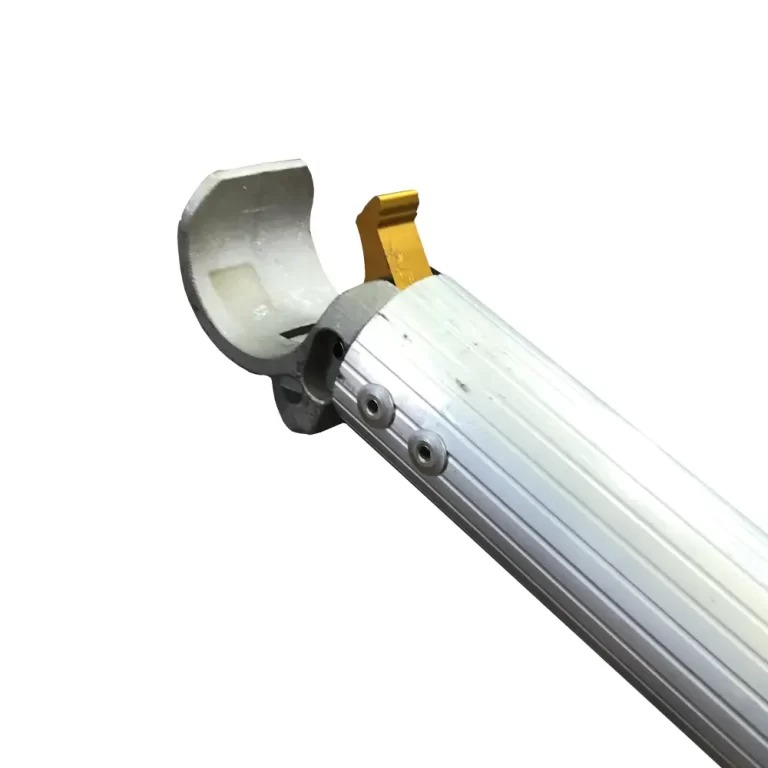

235235 600x600
