Product Description

  • Aluminum Beam offers an SD 150 & 120 “that is available in lengths up to 6.0m. These beams come with either a plastic or wood insert
  • The 750mm Aluminum X Beam was specifically designed as a lightweight alternative to traditional steel unit beams.
  • Strength It boasts an excellent weight-to-strength ratio due to its unique frame design.
  • Preferred ChoiceThis beam is commonly specified by scaffolding design engineers worldwide for high-load capacity requirements.
FA

Features

  • High-strength and non-corrosive.
  • Lightweight, which reduces strain on components and erectors.
  • VersatilityAluminum beams are compatible with various formwork and shoring systems. Whether you’re using cup lock scaffolding, tubes, or other components, aluminum beams integrate seamlessly.
  • Cost SavingsDue to their lightweight design, aluminum beams reduce the need for excessive vertical and horizontal scaffolding members. This translates to cost savings in material and labor
  • Horizontal and Vertical Applications:Aluminum beams are suitable for both horizontal and vertical use. Whether you’re supporting slabs, walls, or other structural elements, these beams adapt easily to different configurations.
  • RecyclabilityAluminum is an eco-friendly material. It’s fully recyclable, which aligns with sustainability goals in construction.
FA

Advantages

  • Aluminum’s strength and lightweight properties allow for fewer total horizontal and vertical members compared to wood beams.
  • Optimal working combination for shoring and scaffolding applications.

Remember

  • Remember, whether you’re constructing a temporary work platform or supporting materials, ladder beams are a versatile solution

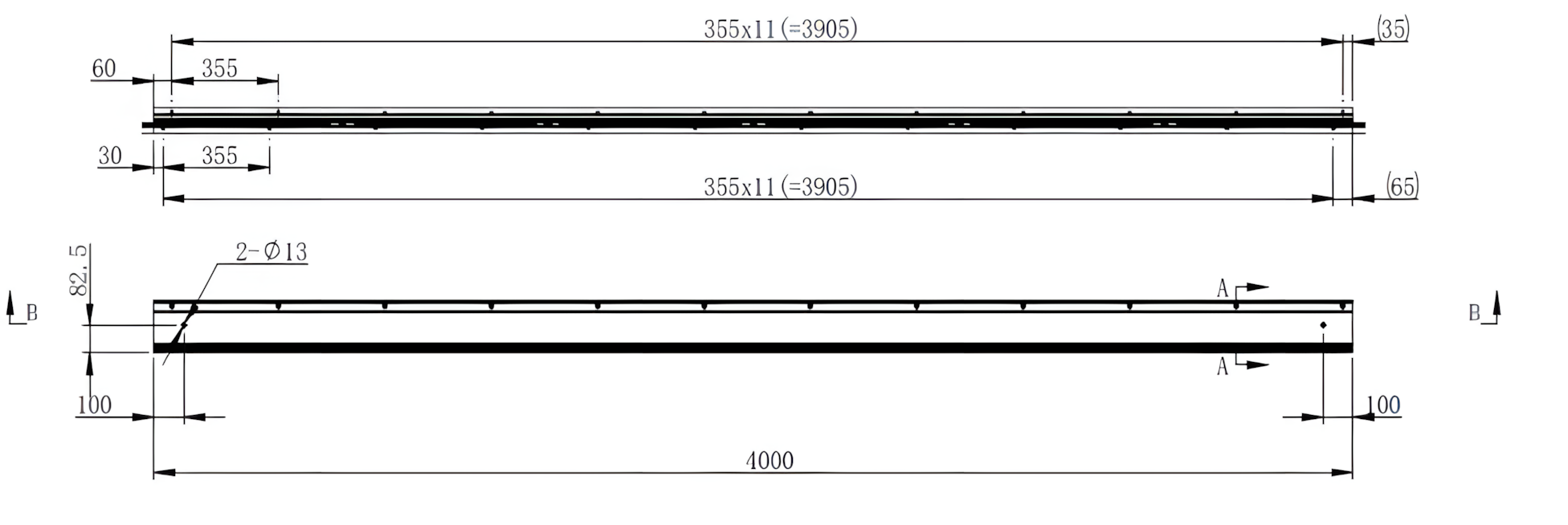

23433345
//
Aluminum beam

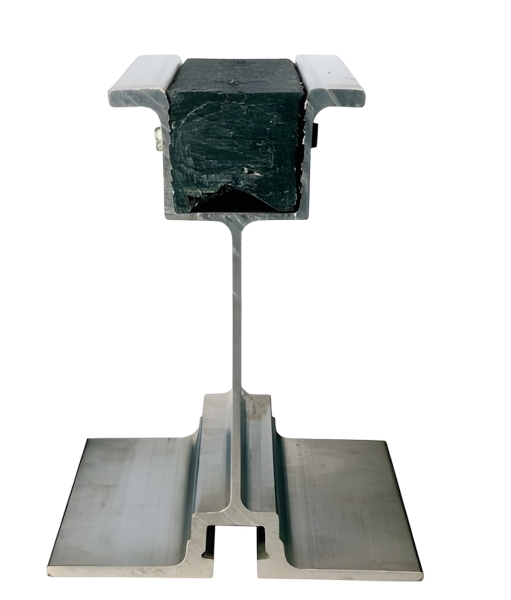

S-150 & T-150 Aluminum Beam

1234124312

Features

  • Stronger than timber equivalents.
  • Increased bending and shear resistance for larger spans.
  • Unique profile design reduces damage.
  • 60% lighter than timber beams.
  • Easily integrated with other Scaffco products.
  • Available in both stock and custom lengths and dimensions.
  • Line stenciled for traceability.

Where is aluminum beam used?

  • Slabss
    Slab FormworkDeeper aluminum beams serve as primary members in slab formwork. They provide support for the concrete slab during pouring and curing. Smaller aluminum beams act as secondary members, reinforcing the overall formwork system.
  • W123
    Wall FormworkAluminum beams are used both horizontally and vertically in wall forms. They function as studs, supporting the formwork panels and ensuring accurate alignment during concrete placement.

Aluminum beams Work schedule, technical specifications

150mm ALUM - 9D / 3.2MM - 3.241Kg/m - Profile 15150mm ALUM - 9D / 3.0MM - 3.010Kg/m - Profile 20150mm ALUM - 9D / 4.0MM - 3.808Kg/m - Profile 25
Modulus Of Elastlclty E70,000 Mpa70,000 Mpa70,000 Mpa
Yled Stress - Alum. Fy285 Mpa285 Mpa285 Mpa
Ultlmate Tenslle Strength Fu310 Mpa310 Mpa310 Mpa
Bendlng Stress fb250 Mpa250 Mpa250 Mpa
Shear Stress q207 Mpa207 Mpa207 Mpa
Cross Sectlon Area A1175.65 mm²1110.96 mm³1405.3 mm³
Moments of Inertla Ixx362 CM4344.64 CM4413.55 CM4
Moments of Inertla Iyy45 CM442.94 CM448.74 CM4
Centrlodal Dlstance yb77.62 MM77.53 MM69.17 MM
Bending Stress fy165Mpa165Mpa165Mpa
Shear Stress fs82.8 Mpa82.8 Mpa82.8 Mpa
Bendlng Strength M7.69 Kn-m7.69 Kn-m10.22 Kn-m
Shear Strength V97.37 Kn91.98 KN116.35 KN

Ultimate Capacity

150mm ALUM - 9D / 3.2MM - 3.241Kg/m - Profile 15150mm ALUM - 9D / 3.0MM - 3.010Kg/m - Profile 20150mm ALUM - 9D / 4.0MM - 3.808Kg/m - Profile 25
Shear97.37 kN91.98 kN91.98 kN
Moment13.29 Kn-m12.66 Kn-m12.66 Kn-m
EI7 X 10-5 X 3627 X 10-5 X 3457 X 10-5 X 345

Allowable Capacity

150mm ALUM - 9D / 3.2MM - 3.241Kg/m - Profile 15150mm ALUM - 9D / 3.0MM - 3.010Kg/m - Profile 20150mm ALUM - 9D / 4.0MM - 3.808Kg/m - Profile 25
Shear97.37 kN116.35 kN68.14 kN
Moment13.29 Kn-m17.03 Kn-m10.22 Kn-m
EI7 X 10-5 X 3627 X 10-5 X 4147 X 10-5 X 414
